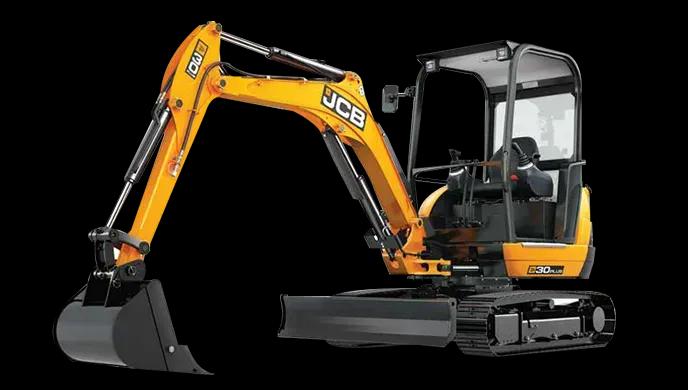

JCB 30PLUS Excavator Specification and Features
Price (Excl. Tax)Inquire

JCB 30PLUS Excavator Specification and Features
Price (Excl. Tax)Inquire
Engine Power
24.7 HP
Operating Weight
2870 Kg
- 150-Point Inspection Certified
- Global Logistics & Shipping Available
- Clear Title Guarantee
Machine Description
The JCB 30PLUS Excavator delivers exceptional performance in a compact package. With a powerful 24.7 HP engine and a 70.21 Lpm main system flow, this excavator boasts impressive digging capabilities, reaching a maximum digging depth of 3050mm and a vertical wall depth of 2080mm. Its efficient hydraulic system (71 liters) and robust construction (2870kg operating weight) ensure reliability and durability on the job site. The 30PLUS is easy to maneuver thanks to its compact dimensions, including a tail swing radius of just 1220mm. Perfect for diverse applications, this excavator offers a balance of power, precision, and efficiency.
Tech Specifications
Net Power (ISO 9249)24.7 HP
Displacement1496 CC
Engine Power24.7 Hp
Main System Max Flow70.21 Lpm
Weight2870 Kg
Operating Weight2870 Kg
Tank Capacity56 L
Service Refill8.5 L
Engine Oil4.5 L
Hydraulic System + Tank71 L
Hydraulic Tank45 L
Hydraulic System71 Ltr
Boom Length2130 mm
Tail Swing Radius1220 mm
Ground Clearance270 mm
Track Gauge1252 mm
Max Digging Depth3050 MM
Bucket Capacity0.07 Cum
Max Vertical Wall Depth2080 mm
BrandJCB
