JCB 2DX Backhoe Loader Specification and Features

Price (Excl. Tax)Inquire
JCB 2DX Backhoe Loader Specification and Features
JCB Logo
Engine Power
36.4 kW (49 hp)
Operating Weight
5220 Kg
Call Sales
  • 150-Point Inspection Certified
  • Global Logistics & Shipping Available
  • Clear Title Guarantee

Machine Description

The JCB 2DX Backhoe Loader is a versatile and powerful machine built for demanding tasks. Its BSIII compliant 3.2 cc diesel engine delivers 36.4 kW (49 hp) of gross power and a maximum torque of 203 NM, ensuring efficient performance across various applications. With impressive digging depth (3020 mm), dump height (2300 mm), and a maximum lift capacity of 1490 kg, this backhoe loader tackles challenging jobs with ease. Its robust design includes a durable transmission system, heavy-duty hydraulics, and a comfortable operator cabin. The JCB 2DX's exceptional maneuverability and various attachments make it ideal for construction, agriculture, and more. Key features include a gear double pump, hydrostatic power steering, and hydraulically actuated brakes for optimal control and safety. Experience unmatched power and precision with the JCB 2DX.

Tech Specifications

CompliantBSIII diesel engine
Displacement3.2 cc
Gross Power36.4 kW (49 hp)
Maximum Torque203 NM
Dump Height2300 mm
Load Over Height2740 mm
Hinge Pin Height3000 mm
Hinge Pin Forward Reach370 mm
Reach At Ground1300 mm
Rollback At Ground46 Degree
Dump Angle44 °
Bucket Capacity (Standard)0.6 Cum
See Morebackhoe Loader Dimensionmaxd Dig Depth3020 mm
Reach Ground Level To Rear Wheel Center5140 mm
Reach At Full Height To Slew Center3930 mm
Max Working Height3880 mm
Max Load Over Height2830 mm
Max Lift Capacity1490 Kg
Backhoe Bucket Capacity0.18 Cum
Max Operating Weight5220 Kg
Transport Length5500 mm
Width Over Bucket1912 MM
Track Width Rear1420 MM
Track Width Front1620 MM
Wheelbase2080 mm
Minimum Ground Clearance330 mm
Height To Top Of Cabin2070 mm
Pump TypeGear, double pump
Pump Flow70.4 lpm @ 2200 rpm
Engine Oil8 Ltr
Rear Axle10 Ltr
Transmission Oil Capacity16 Ltr
Fuel Tank60 Ltr
Coolant13.5 Ltr
Hydraulic Oil System60 Ltr
Transmission Make And ModelThe JCB. SS 700 svncbroshuttle transmission. It consistsof a 4-speed, fully Synchromesh, smooth shift gearbox with integral torque convertor and electrically operated reversing shuttle
RearDrive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short propshaft from gear box.
Front2WD steer axle, centrally pivoted, with oscillation angle of 16°.
TypeFull power, front wheel hydrostatic power steering with power track road and manual capability in the event of engine or hydraulic power failure.
System Pressure1810 p.s.i (125 bar)
Brakes ServiceHydraulically actuated, dual line, self-adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water, etc. Operated through independent pedals linked togeth
Standard Tyre Front7.5 x 16 -16 PR
Standard Tyre Rear12 x 24 - 20 PR, 14.9 x 24 - 12 PR
BrandJCB

More from JCB

JCB 3DX Backhoe Loader Specification and Features
JCB

Backhoe Loader

JCB 3DX Backhoe Loader Specification and Features

37 kW (49hp) @ 2 050 rpm
7200 Kg

$45,000

JCB 3DX Plus Backhoe Loader Specification and Features
JCB

Backhoe Loader

JCB 3DX Plus Backhoe Loader Specification and Features

55kW (74hp) @ 2200 rpm
7510 Kg

$46,000

JCB 3DXL PLUS Backhoe Loader Specification and Features
JCB

Backhoe Loader

JCB 3DXL PLUS Backhoe Loader Specification and Features

55kW (74hp) @ 2200 rpm
7620 Kg

$46,000

JCB 4DX Backhoe Loader Specification and Features
JCB

Backhoe Loader

JCB 4DX Backhoe Loader Specification and Features

55kW (74hp) @ 2200 rpm
8470 Kg

On Request

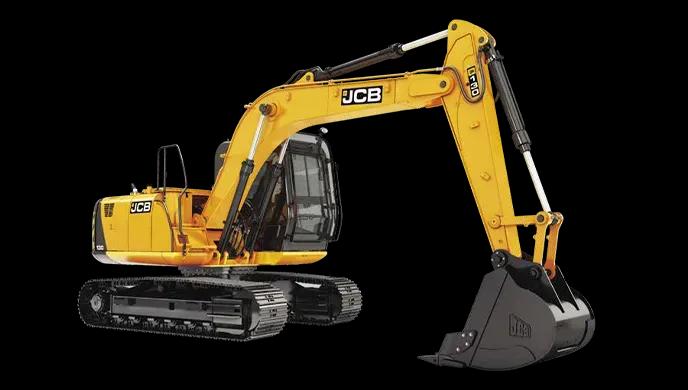

JCB 130 Excavator Specification and Features
