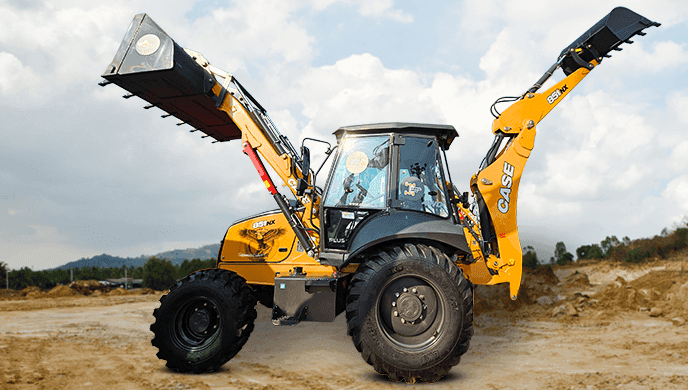

CASE 851 NX Backhoe Loader Specification and Features
Price (Excl. Tax)Inquire
CASE 851 NX Backhoe Loader Specification and Features
Price (Excl. Tax)Inquire
Engine Power
74
Operating Weight
7800 Kg
- 150-Point Inspection Certified
- Global Logistics & Shipping Available
- Clear Title Guarantee
Machine Description
The CASE 851 NX Backhoe Loader delivers exceptional performance and versatility. Its powerful 74hp turbocharged engine (2800cc displacement) provides ample power for demanding tasks, complemented by a robust hydraulic system (140 LPM pump flow) for efficient operation. Enjoy impressive lifting capacities with a 2720mm dump height and 3300mm load-over height. The 851 NX features a durable design, incorporating a 4x4 power shuttle transmission for superior maneuverability and control. With a generous fuel tank (129 liters) and a range of impressive specifications including bucket breakout force of 5000 kGf, this backhoe loader is built for long hours of productive work. Experience the CASE difference.
Tech Specifications
Displacement2800 cc
Air Intake TypeTurbocharged Intercooled
Gross Power74
Maximum Torque375 NM
Dump Height2720 mm
Load Over Height3300 mm
Hinge Pin Height3600 mm
Hinge Pin Forward Reach240 mm
Reach At Ground1980 mm
Max Reach At Full Height1190 mm
Dump Angle45 °
Bucket Capacity (Standard)1100 Cum
See Morebackhoe Loader Dimensionmaxd Dig Depth4700 mm
Reach Ground Level To Swing Center5900 mm
Reach Ground Level To Rear Wheel Center7220 mm
Reach At Full Height To Slew Center2400 mm
Max Working Height5700 mm
Max Load Over Height3800 mm
Bucket Rotation204 Degree
Bucket Breakout Force204 Degree -5000 kGf
See Moreoverall Dimension Amp Weightmax Operating Weight7800 Kg
Transport Length6600 mm
Width Over Stabilizer2270
Width Over Bucket2280 mm
Track Width Rear1700 mm
Track Width Front1880 mm
Wheelbase2180 mm
Minimum Ground Clearance380 mm
See Morehydraulic Systemsystem TypeOpen Center Load Sensing
Pump TypeVariable Displacement
Pump Flow140 LPM
System Relief Pressure240 Bar
Engine Oil8.5 Ltr
Rear Axle17.1 L
Hydraulic Oil Replacement44 L
Transmission Oil Capacity18-2WD, 20-4WD
Fuel Tank129 Ltr
Fuel TypeDiesel
Coolant10 L
Hydraulic Oil System96 Ltr
Powertrain Type4 Forward - 4 Reverse Power Shuttle Synchromesh Transmission
RearCARRARO 28.32M
FrontCNH PS1300 (2WD) CARARRO / NH 26.17 M (4WD)
Front Axle Oscillation21 (2WD)
TypePower Steering
System Pressure140 Bar
Unit Displacement125 CC
Turning Circle Diameter Otside Bucket4600 mm
Turning Circle Diameter Outside Bucket Not Braked5550 mm
Brakes ServiceHydraulic foot operated 2 Disc per side
Brakes ParkingMechanical Actuated calipper type Brake pack on Rear Axle input Shaft
Standard Tyre Front9 x 16 - 16 PR
Standard Tyre Rear16.9 x 28-12 PR
BrandCASE
