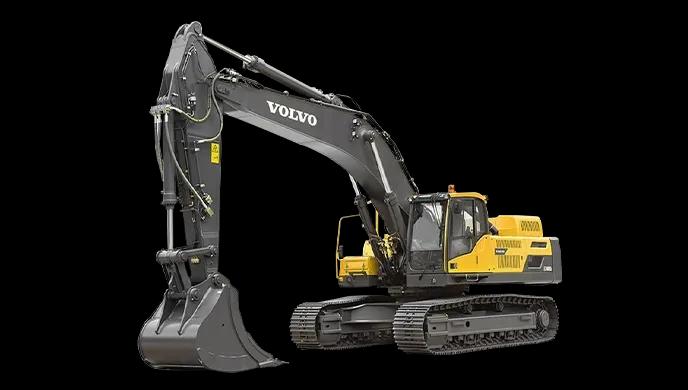

Volvo EC480DL Excavator Specification and Features
Price (Excl. Tax)Inquire

Volvo EC480DL Excavator Specification and Features
Price (Excl. Tax)Inquire
Engine Power
288 hp
Operating Weight
53100 Kg
- 150-Point Inspection Certified
- Global Logistics & Shipping Available
- Clear Title Guarantee
Machine Description
The Volvo EC480DL Excavator: Unmatched Power and Precision. Boasting a robust 288 hp engine and a massive 3.8 cum bucket capacity, this heavy-duty excavator delivers exceptional digging performance. Its advanced hydraulic system (520L) ensures smooth, efficient operation, while features like a 6580 mm max digging depth and a 15670 kg lifting capacity make it ideal for large-scale projects. Experience superior control and maneuverability with its optimized tail swing radius (3800 mm) and impressive ground clearance (500 mm). Built for durability and reliability, the Volvo EC480DL is engineered to withstand the toughest conditions.
Tech Specifications
Net Power (ISO 9249)288 hp
Bore131 mm
Stroke158 mm
Engine Power288 Hp
Main System Max Flow358 Lpm
Weight53100 Kg
Operating Weight53100 Kg
Tank Capacity685 L
Service Refill60 L
Engine Oil42 L
Hydraulic System + Tank520 L
Hydraulic Tank270 L
Hydraulic System520 L
Tail Swing Radius3800 mm
Counterweight Clearance1210 mm
Ground Clearance500 mm
Track Length5370 mm
Track Gauge2390 mm
Max Digging Depth6580 MM
Bucket Capacity3.8 Cum
Max Vertical Wall Depth5900 mm
Lifting Capacity15670 Kg
BrandVolvo
