Tata Hitachi ZAXIS 470H Excavator Specification and Features

Price (Excl. Tax)Inquire
Tata Hitachi ZAXIS 470H Excavator Specification and Features
Tata Hitachi Logo
Engine Power
315 hp
Operating Weight
47100 Kg
Call Sales
  • 150-Point Inspection Certified
  • Global Logistics & Shipping Available
  • Clear Title Guarantee

Machine Description

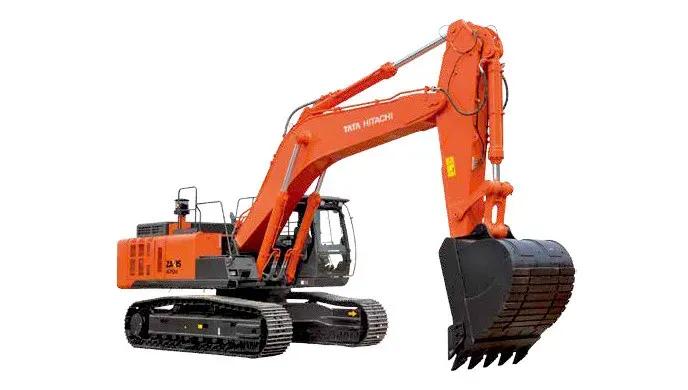

The Tata Hitachi ZAXIS 470H Excavator is a powerful and efficient machine designed for heavy-duty applications. With a net power of 315 hp and a robust engine (15.681 L displacement, 147 mm bore, 154 mm stroke), it delivers exceptional performance. Its impressive digging depth of 11100 mm and 3.1 cum bucket capacity ensures high productivity. The ZAXIS 470H boasts a range of features for enhanced efficiency and operator comfort, including a main system max flow of 2 Lpm, and a large fuel tank (705 L). Built for durability, it features a sturdy construction with key dimensions like a shipping height of 3170 mm, ground clearance of 495 mm, and track gauge of 2740 mm. This excavator is ideal for large-scale construction, mining, and quarrying projects.

Tech Specifications

Net Power (ISO 9249)315 hp
Bore147 mm
Stroke154 mm
Displacement15.681 L
Engine Power315 Hp
Main System Max Flow2 Lpm
Weight47100 Kg
Operating Weight47100 Kg
Tank Capacity705 L
Service Refill61 L
Engine Oil55 L
Hydraulic System + Tank510 L
Hydraulic Tank310 L
Hydraulic System510 L
Shipping Height (Top of Cab)3170 mm
Ground Clearance495 mm
Track Gauge2740 mm
Max Digging Depth11100 MM
Bucket Capacity3.1 Cum
Maximum Cutting Height10070 mm
