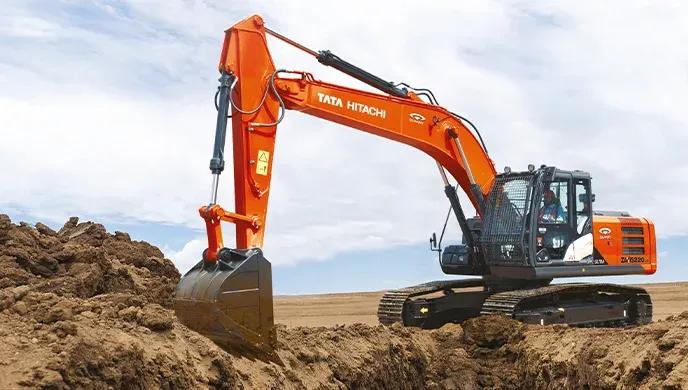

Tata Hitachi Zaxis 220lc ultra Excavator Specification and Features

Price (Excl. Tax)Inquire
Tata Hitachi Zaxis 220lc ultra Excavator Specification and Features
Tata Hitachi Logo
Engine Power
168 HP (170 PS) at 2100 min (rpm)
Operating Weight
21700 Kg
Call Sales
  • 150-Point Inspection Certified
  • Global Logistics & Shipping Available
  • Clear Title Guarantee

Machine Description

The Tata Hitachi Zaxis 220LC Ultra Excavator is a powerhouse of performance and efficiency, ideal for heavy-duty construction and excavation projects. Boasting a robust 168 HP engine, this excavator delivers exceptional power and speed. Its advanced hydraulic system, featuring two variable displacement axial piston pumps, ensures precise control and smooth operation. With a maximum digging depth of 6630mm and a maximum cutting height of 10070mm, the Zaxis 220LC Ultra conquers challenging terrains with ease. Key features include a substantial 16100 kgf bucket digging force, a 12.2 min (rpm) swing speed, and a large 400L fuel tank for extended operational hours. Built for durability and reliability, this excavator is a valuable asset for any large-scale operation.

Tech Specifications

Net Power (ISO 9249)168 HP (170 PS) at 2100 min (rpm)
Bore105 mm
Stroke125 mm
Displacement6494
Engine Power168 Hp
Swing Speed12.2 min (rpm)
Maximum Swing Torque65.1 kNm
Weight21700 Kg
Operating Weight21700 Kg
Tank Capacity400 L
Fuel TypeDiesel
Engine Oil25 L
Swing Drive6.2 L
Hydraulic System + Tank240 L
Hydraulic Tank135 L
Hydraulic System2 Variable displacement axial piston pumps
Counterweight Clearance1040 mm
Ground Clearance450 mm
Track Gauge2390 mm
Max Digging Depth6630 MM
Maximum Cutting Height10070 mm
Bucket Digging Force Iso16100 kgf
