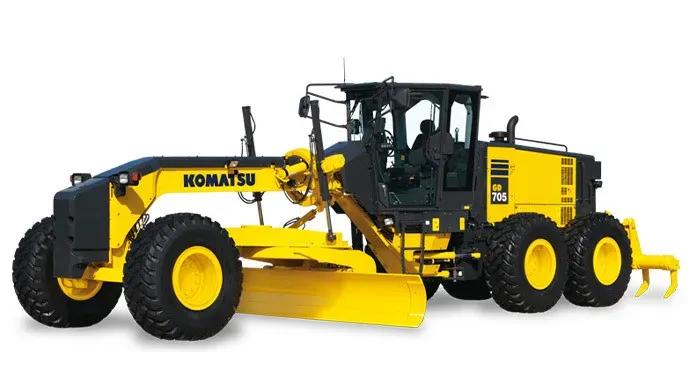

Komatsu GD705-5 Motor Grader Specification and Features

Price (Excl. Tax)Inquire
Komatsu GD705-5 Motor Grader Specification and Features
Komatsu Logo
Engine Power
250 Hp
Operating Weight
N/A
Call Sales
  • 150-Point Inspection Certified
  • Global Logistics & Shipping Available
  • Clear Title Guarantee

Machine Description

The Komatsu GD705-5 Motor Grader is a powerful and versatile machine designed for superior performance in demanding applications. Its KOMATSU SAA6D114E-3 engine delivers 250 HP, enabling efficient operation even under heavy loads. With a maximum torque of 1130 Nm and impressive speeds (42.5 kmph forward, 34 mph reverse), it ensures high productivity. The GD705-5 boasts a robust design, including a 4.32 mm moldboard width, 940 mm maximum depth of cut, and a durable cutting edge (203 mm x 16 mm). Its large fuel tank (408 L) minimizes downtime. Experience exceptional maneuverability with a turning radius of 7.6 mm. This machine is built for precision and efficiency, making it ideal for road construction, site preparation, and other heavy-duty grading projects. Komatsu's commitment to quality and reliability is evident in every component, from the engine to the hydraulic system.

Tech Specifications

Engine ModelKOMATSU SAA6D114E-3
Net Power Iso 9249 Sae J1349 Eec 80 1269250 Hp
Bore114 mm
Stroke135 mm
Maximum Torque Iso 92941130 NM
Top Forward Speed42.5 Kmph
Top Reverse Speed34 Mph
Turning Radius Outside Front Tires7.6 mm
Fuel Tank408 L
Engine Crankcase27 L
Cooling System24.5 L
Hydraulic System69 L
Maximum Depth Of Cut940 mm
Width Moldboard4.32 mm
Cutting Edge203 mm x 16 mm
Arc Radius414 mm
Length Of Machine11050 mm
BrandKomatsu
