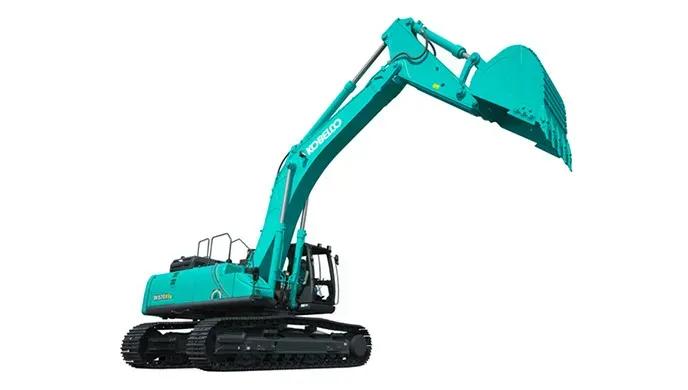

Kobelco SK520 XD LC-10 Excavator Specification and Features
Price (Excl. Tax)Inquire

Kobelco SK520 XD LC-10 Excavator Specification and Features
Price (Excl. Tax)Inquire
Engine Power
344 hp
Operating Weight
51200 Kg
- 150-Point Inspection Certified
- Global Logistics & Shipping Available
- Clear Title Guarantee
Machine Description
The Kobelco SK520 XD LC-10 Excavator is a powerhouse of performance and efficiency, ideal for large-scale projects. Boasting a robust 344 hp engine and a massive 2100 cubic meter bucket capacity, this excavator delivers exceptional digging power and speed. Its advanced hydraulic system ensures smooth and precise operation, while features like a 6820 mm maximum digging depth and a generous 638 L tank capacity guarantee extended uptime. Built for durability and reliability, the SK520 XD LC-10 is designed to handle the toughest jobs, minimizing downtime and maximizing productivity. Experience unmatched power and control with Kobelco's cutting-edge engineering.
Tech Specifications
Net Power (ISO 9249)344 hp
Bore122 mm
Stroke150 mm
Engine Power344 Hp
Main System Max Flow2 Lpm
Weight51200 Kg
Operating Weight51200 Kg
Tank Capacity638 L
Service Refill47.4 L
Engine Oil42.5 L
Hydraulic System + Tank631 L
Hydraulic Tank371 L
Tail Swing Radius3800 mm
Ground Clearance510 mm
Track Gauge2750 mm
Max Digging Depth6820 MM
Bucket Capacity2100 Cum
Max Vertical Wall Depth6110 mm
BrandKobelco
