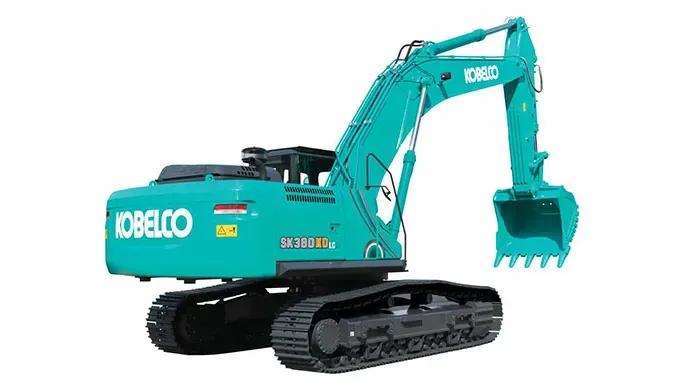

Kobelco SK380XDLC-10 Excavator Specification and Features

Price (Excl. Tax)Inquire
Kobelco SK380XDLC-10 Excavator Specification and Features
Kobelco Logo
Engine Power
268 hp
Operating Weight
37200 Kg
Call Sales
  • 150-Point Inspection Certified
  • Global Logistics & Shipping Available
  • Clear Title Guarantee

Machine Description

The Kobelco SK380XDLC-10 Excavator is a powerhouse of performance and efficiency, designed for demanding construction and demolition projects. Its robust build, boasting a net power of 268 hp and a 7.684L displacement engine, ensures superior digging force and speed. The excavator's impressive specifications include a maximum digging depth of 7560mm and a bucket capacity of 1.9 cum, maximizing productivity on any job site. With features like a 10 min-1 swing speed and a large hydraulic tank capacity, downtime is minimized, and operational efficiency is maximized. The SK380XDLC-10 is built for reliability and longevity, making it a smart investment for any serious operation. Key features include a 3600mm tail swing radius for maneuverability in tight spaces and a 515mm ground clearance for diverse terrain applications. Experience unmatched power and precision with the Kobelco SK380XDLC-10.

Tech Specifications

Net Power (ISO 9249)268 hp
Bore112 mm
Stroke130 mm
Displacement7.684 L
Engine Power268 Hp
Main System Max Flow2 Lpm
Swing Speed10 min-1 {rpm}
Weight37200 Kg
Operating Weight37200 Kg
Tank Capacity503 L
Service Refill35 L
Engine Oil28.5 L
Hydraulic System + Tank407 L
Hydraulic Tank245 L
Tail Swing Radius3600 mm
Counterweight Clearance1000 mm
Ground Clearance515 mm
Max Digging Depth7560 MM
Bucket Capacity1.9 Cum
Max Vertical Wall Depth6480 mm
BrandKobelco
