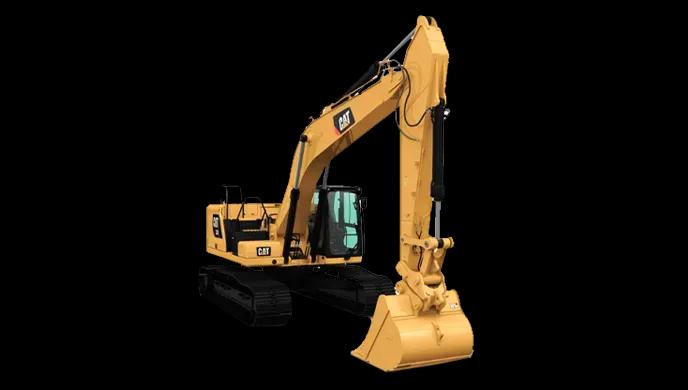

CAT 330 GC Excavator Specification and Features

Price (Excl. Tax)$69,000
CAT 330 GC Excavator Specification and Features
CAT Logo
Engine Power
212 Hp
Operating Weight
28900 Kg
Call Sales
  • 150-Point Inspection Certified
  • Global Logistics & Shipping Available
  • Clear Title Guarantee

Machine Description

The CAT 330 GC Excavator delivers exceptional performance and fuel efficiency. Its powerful 212 hp (ISO 9249) engine, coupled with a robust hydraulic system (560 Lpm max flow), provides the muscle for demanding applications. This excavator boasts impressive digging forces (179 kN bucket, 145 kN stick), a generous 1.6 cum bucket capacity, and a reach capable of handling diverse tasks. The 330 GC is designed for ease of operation and maintenance, maximizing uptime and minimizing operational costs. Its durable construction and advanced engineering ensure long-term reliability and efficiency in challenging environments. Experience the power and precision of the CAT 330 GC.

Tech Specifications

Net Power (ISO 9249)212 Hp
Power (ISO 14396)213 Hp
Bore105 mm
Stroke135 mm
Displacement7.01 L
Engine Power213 Hp
Main System Max Flow560 Lpm
Maximum Pressure Equipment35000 psi
Maximum Pressure Travel35000 psi
Maximum Pressure Swing28400 psi
Swing Speed11.5 Rpm
Maximum Swing Torque105 kN·m
Weight28900 Kg
Operating Weight28900 Kg
Tank Capacity474 L
Service Refill25 L
Engine Oil25 L
Swing Drive10 L
Weights Final Drive5.5 L
Hydraulic System + Tank310 L
Hydraulic Tank147 L
Tail Swing Radius3130 mm
Counterweight Clearance1110 mm
Ground Clearance490 mm
Track Length4850 mm
Length To Center Of Rollers3990 mm
Track Gauge2590 mm
Max Digging Depth7260 MM
Bucket Capacity1.6 Cum
Maximum Cutting Height9880 mm
Max Vertical Wall Depth5510 mm
Bucket Digging Force Iso179 kN
Stick Digging Force Iso145 kN
Boom Cylinder Bore140 mm
Boom Cylinder Store1407 mm
Bucket Cylinder Bore135 mm
Bucket Cylinder Store1156 mm
Stick Cylinder Bore150 mm
BrandCAT
