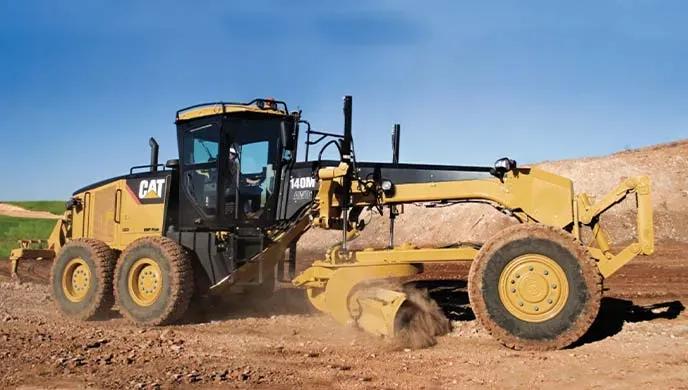

CAT 140M AWD Motor Grader Specification and Features
Price (Excl. Tax)Inquire

CAT 140M AWD Motor Grader Specification and Features
Price (Excl. Tax)Inquire
Engine Power
179 Hp
Operating Weight
N/A
- 150-Point Inspection Certified
- Global Logistics & Shipping Available
- Clear Title Guarantee
Machine Description
The CAT 140M AWD Motor Grader boasts superior power and precision. Its Cat C9.3 engine delivers 179 HP and 1237 NM of torque, enabling effortless grading even in challenging conditions. Experience unmatched versatility with a top forward speed of 46.6 kmph and a top reverse speed of 23 mph. The 140M's robust moldboard system, with its extensive side shift capabilities and impressive cutting depth, guarantees exceptional grading performance. Benefit from extended operational times with its large fuel tank capacity (416L) and optimized service refill points. This machine is built for durability and efficiency, making it the ideal solution for large-scale infrastructure projects.
Tech Specifications
Engine ModelCat C9.3
Net Power Iso 9249 Sae J1349 Eec 80 1269179 Hp
Bore115 mm
Stroke149 mm
Engine Rpm2000 rpm
Maximum Torque Iso 92941237 NM
Top Forward Speed46.6 Kmph
Top Reverse Speed23 Mph
See Moreservice Refill Capacitiesfuel Tank416 L
Circle Drive7 L
Cooling System40 L
Hydraulic System64 L
Moldboard Side Shift Right660 mm
Moldboard Side Shift Left510 mm
Maximum Lift Above Ground480 mm
Maximum Depth Of Cut715 mm
Width Moldboard3.7 mm
Height610 mm
End Bit152 mm
Cutting Edge152 mm
Arc Radius413 mm
Throat Clearance166 mm
Length Of Machine8754 mm
BrandCAT
